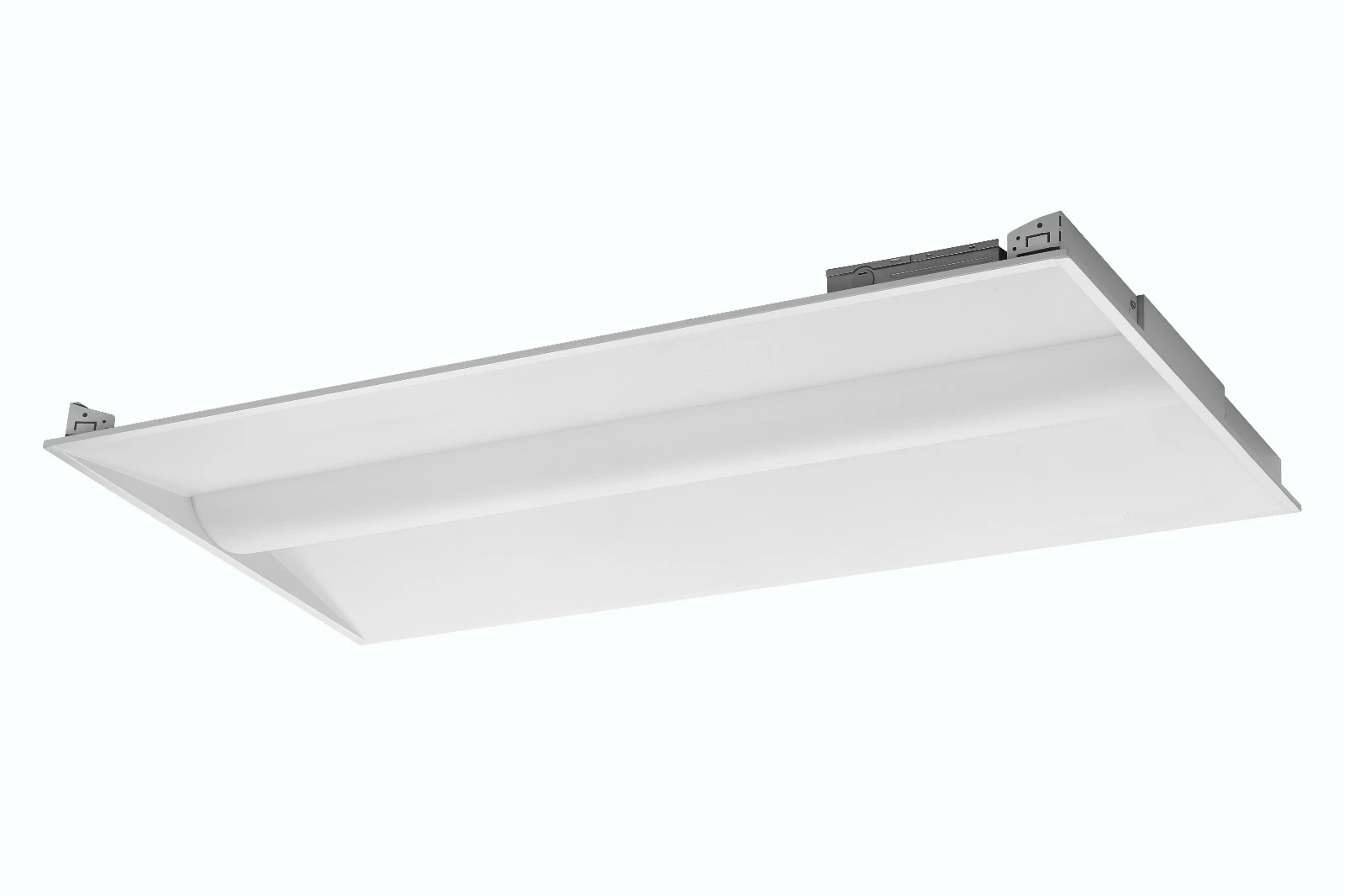

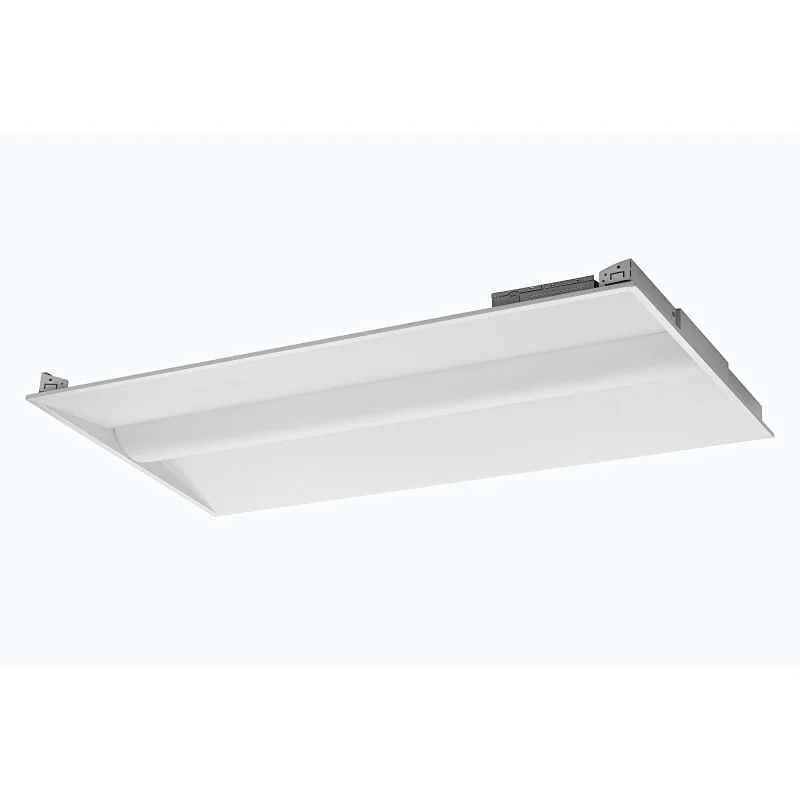

2x4 LED Troffer Light 30w/35w/40w 3500k 100-277V
2x4 LED Troffer Light 30w/35w/40w 3500k 100-277V
2x4 LED Troffer Light 30w/35w/40w 3500k 100-277V

2x4 LED Troffer Light 30w/35w/40w 3500k 100-277V

Model NO.
TRAC24P4035OD-H3LA0080
Delivery:
FOB
Supply Ability:
10000 piece / Month
Country of Origin:
Ningbo port
Stock Time:
30-50 Days
Quantity:

Product Features:

It is made of die-forged large cold-rolledsteel plate, very simple and stylish.It is made of a high-brightness LED lampwith a back light design. It uses UL standard constant current driver. It haslow glare, soft and even light. It saves energy, the life expectancy can reach50,000 hours, and it is easy for embedded installation.

  • High efficiency & energy saving. Under the condition of the same llumination, it saves more than 67% energy compared with the traditional lamp.
  • Every LED works independently. While one LED loses efficacy, others can work as usual.
  • Long life span, using semiconductor chip as the light resource, the life can be over 50,000 hrs.
  • No UV& IR . It won’t distribute ray radiation
  • Eco-friendly,No Hg & Xe or other harmful element. Recyclable, also it won’t generate EMI.
  • External constant current driver, high efficiency,reliable work.

      Perfect finish, high gloss baked white matte powder paint

      Electro-coat white finish after zinc glaze



     5 Year Warranty on complete fixture. (LED's, Driver, & Housing)

      SDCM<4, CRI 80+, THD <20%, Life 50,000 hrs



    Soft light, No glare

    Damp location: Dust proof,Anti- insect

    LED engine design withAdvanced Thermal Management

    Up to 15 year maintenancefree operation



Technical Parameter:

Specifications2 x 4
Power30W/35W/40W
Input Voltage/FrequencyAC 100-277 V   50/60 Hz
Power FactorPF>0.9
LED TypeSMD 2835
LED ChipsSamsung
Lumen output3840LM/4445LM/5040 LM
Lumen Per W128/127/126 LM/W
Color Rendering IndexRa>80
Operating Temperature-4°F to 104°F
L 70 Lumen Maintenance(Hours)50000 Hrs
Environment Damp Location
Frame MaterialsPC+STEEL
CertificationETL  FCC DLC5.0(Premium )

Note:  1、Light optic with a little deviation for different color temperature LED ,deviation value≤5%

           2、There parameters will exist tolerance of error according to related rules.

Dimension(mm):

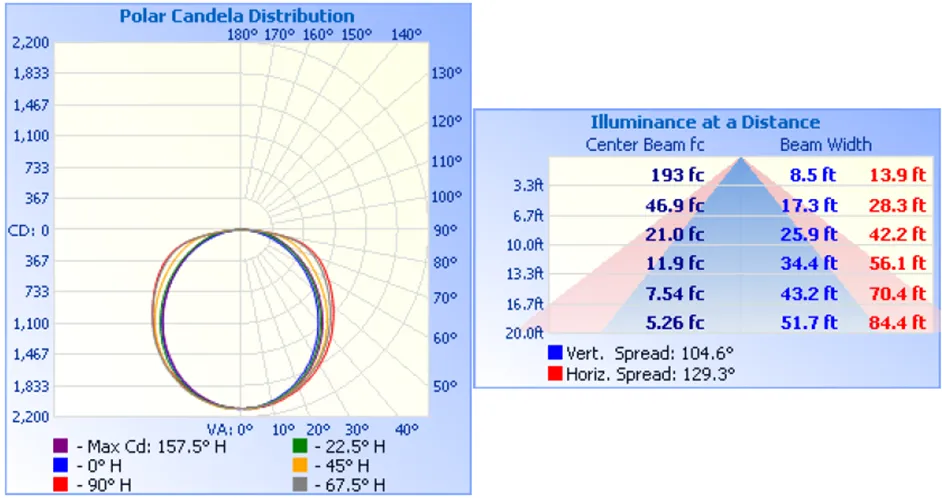

Light Distribution:

  • Color:White
  • Type:Indoor lighting
  • Certification:DLC5.0, ETL, FCC
  • Model Number:TRAC24P4035OD-H3LA0080
  • Emitting Color:Yellow; White; Other
