2x4 LED Backlit Panel Light 50W 4000K 5750 Lumens
2x4 LED Backlit Panel Light 50W 4000K 5750 Lumens
2x4 LED Backlit Panel Light 50W 4000K 5750 Lumens
2x4 LED Backlit Panel Light 50W 4000K 5750 Lumens
2x4 LED Backlit Panel Light 50W 4000K 5750 Lumens

2x4 LED Backlit Panel Light 50W 4000K 5750 Lumens

Model NO.
OF0524S5040OD-A3LA0080
Delivery
FOB
Supply Ability
10000 piece / Month
Country of Origin
Ningbo port
Stock Time
30-50 Days
Quantity:

PRODUCT DESCRIPTION:
A seamless replacement for 1'x4', 2'x2' and 2'x4' fluorescent fixtures,  LED Flat Panels are designed to lay in drop ceilings in offices, schools, and healthcare applications. The panels produce highly efficient, uniform illumination. The panels are fully dimmable, and may be combined
with motion sensors for further energy savings.  panels deliver all the benefits of LED technology, including a long life with high lumen
maintenance, reduced energy consumption and lower maintenance costs.

  • 0-10V Dimmable
  • Voltage: 120-277V
  • L70 Lumen Maintenance ≥100,000 at 40°C (104°F)

Technical Parameter:

Specifications2 x 4
Power50 W
Input Voltage/FrequencyAC 100-277 V   50/60 Hz
Power FactorPF>0.9
LED TypeSMD 2835
LED DriverCUPOWER
Lumen output5750 LM
Lumen Per W115 LM/W
Color Rendering IndexRa>80
Operating Temperature-4°F to 104°F
L 70 Lumen Maintenance(Hours)50000 Hrs
InstallationMounts into standard T-Bar/Grid drop ceiling
Frame MaterialsAluminium
CertificationETL  DLC5.1(Premium )

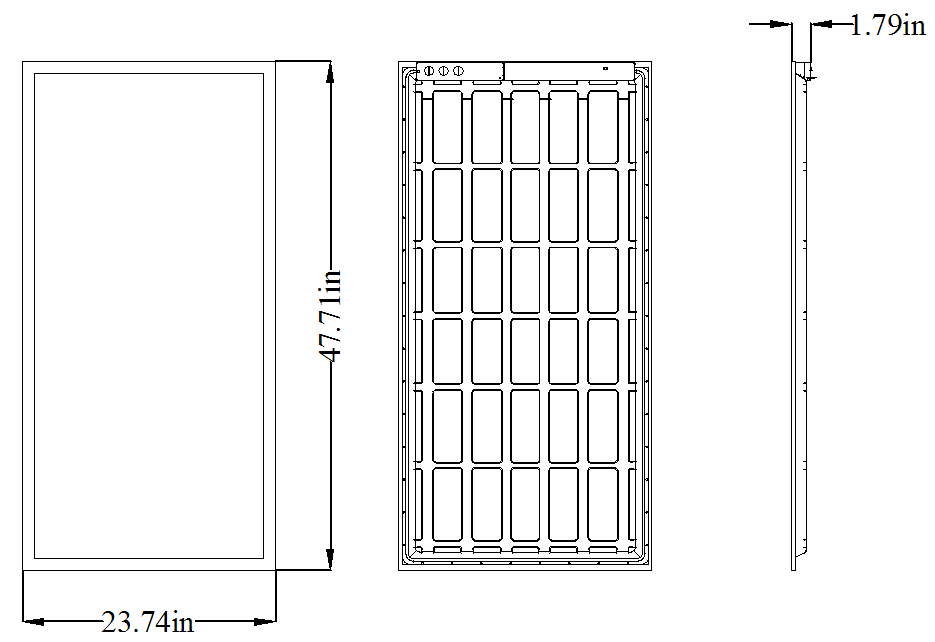

Dimension(mm):

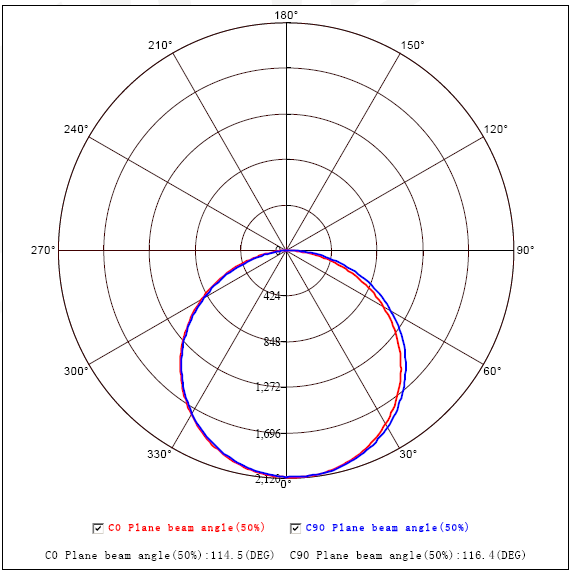

Light Distribution:

  • Emitting Color:Cold White
  • Model Number:OF0524S50400D-A3LA0080
  • Brand Name:Glitland lighting
  • Place of Origin:China
  • Certification:RoHS; ETL
  • IP Rating:Other
  • Lamp Body Material:Other
  • Working Lifetime(Hour):50000
  • Working Temperature(℃):-4°F to 104°F
  • Color Temperature(CCT):Cool White
  • CRI (Ra>):80
  • Lamp Luminous Efficiency(lm/w):115
  • Lamp Luminous Flux(lm):5750
  • Lamp Power(W):Other
  • Input Voltage(V):120-270VAC
  • Warranty(Years):5
  • LED Light Source:2835
  • Color:White
