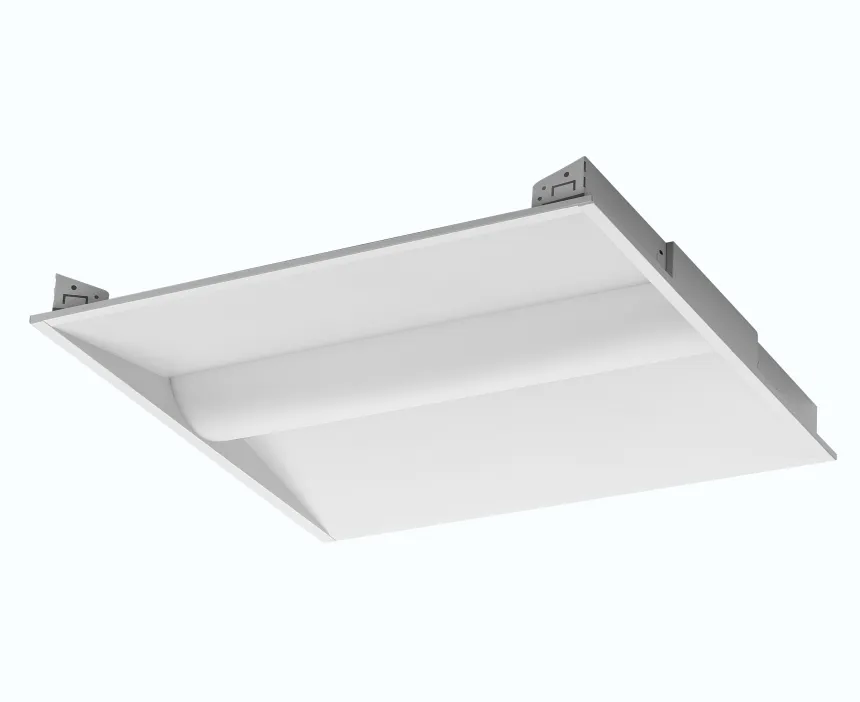

2x2 LED Troffer Light 20w/30w/36w 4000k 100-277V
2x2 LED Troffer Light 20w/30w/36w 4000k 100-277V
2x2 LED Troffer Light 20w/30w/36w 4000k 100-277V

2x2 LED Troffer Light 20w/30w/36w 4000k 100-277V

Model NO.:
Supply Ability:
10000 piece / Month
Country of Origin:
Ningbo Port
Stock Time:
30-50 Days

Product Features:

It is made of die-forged large cold-rolled steel plate, very simple and stylish.It is made of a high-brightness LED lamp with a back light design. It uses UL standard constant current driver. It has low glare, soft and even light. It saves energy, the life expectancy can reach 50,000 hours, and it is easy for embedded installation.

  • High efficiency & energy saving. Under the condition of the same llumination, it saves more than 67% energy compared with the traditional lamp.
  • Every LED works independently. While one LED loses efficacy, others can work as usual.
  • Long life span, using semiconductor chip as the light resource, the life can be over 50,000 hrs.
  • No UV& IR . It won’t distribute ray radiation
  • Eco-friendly,No Hg & Xe ,or other harmful element. Recyclable, also it won’t generate EMI.
  • External constant current driver, high efficiency,reliable work.

      Perfect finish, high gloss baked white matte powder paint

      Electro-coat white finish after zinc glazed

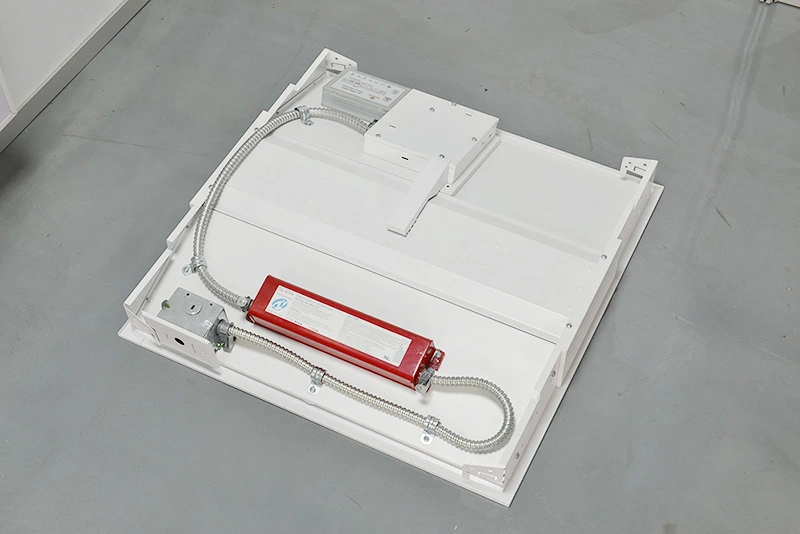

      Ideal for use sensors, advanced controls and emergency kits

      Flexible installing all kinds of Emergency kits, field installable or pre- installed


    Soft light, No glare

    Damp location: Dust proof, Anti- insect

    LED engine design with Advanced Thermal Management

    Up to 15 year maintenance free operation

Technical Parameter:

Specifications2 x 2
Input Voltage/FrequencyAC 100-277 V   50/60 Hz
Power FactorPF>0.9
LED TypeSMD 2835
LED ChipsSamsung
Lumen output2640LM/3870LM/3900 LM
Lumen Per W130 LM/W
Color Rendering IndexRa>80
Operating Temperature-4°F to 104°F
L 70 Lumen Maintenance(Hours)50000 Hrs
Environment Damp Location
Frame MaterialsPC+STEEL
CertificationETL  FCC DLC5.0(Premium )

Note: 1、Light optic with a little deviation for different color temperature LED ,deviation value≤5%

           2、There parameters will exist tolerance of error according to related rules.

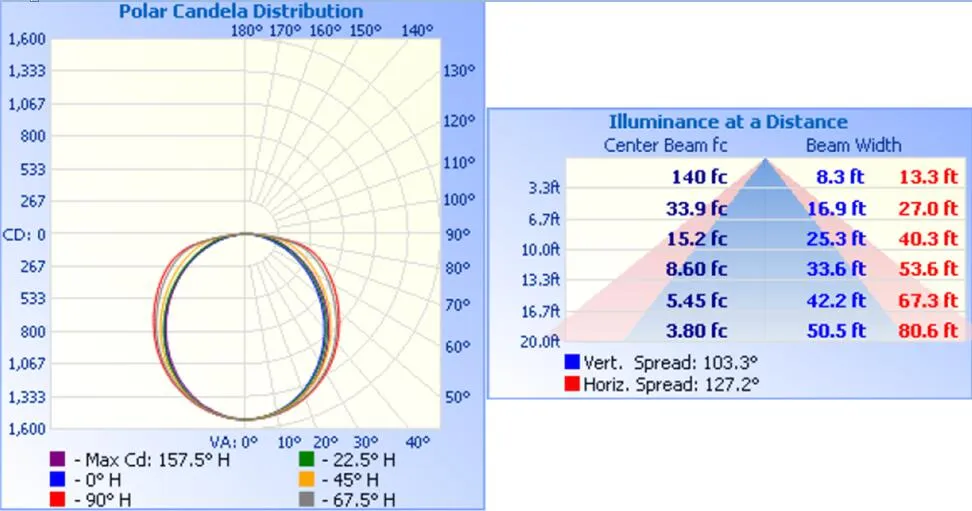

Light Distribution:

  • Color:White
  • Type:indoor lighting
  • Certification:DLC5.0, ETL, FCC
  • Model Number:TRAC22P3640OD-H3LA0080
  • Emitting Color:Yellow;White;Other
